Lagoon, our top-of-the-range catamarans
YACHTS
Lagoon 40
Lagoon 42
Lagoon 46
Lagoon 50
Lagoon 55
Lagoon Sixty 5
Lagoon Seventy 7
THE LAGOON 40
A cutting-edge catamaran
Features of the Lagoon 40
| Naval architect | VPLP design |
| Exterior design | Patrick le Quément |
| Interior design | Nauta Design |
| Light displacement | 11,74 m / 38'6' |
| Overall length | 6,76 m / 22'2'' |
| Draught | 1,35 m / 4'5'' |
| Air draught | 18,42 m / 60'5'' |
| Light displacement (CE) | 10,885 t / 24 001 Lbs |
| Upwind sail area | 80 m² / 861 sq.ft |
| Mainsail with horn (optional) | 48 m² / 516 sq.ft |
| Self-steering jib | 32 m² / 344 sq.ft |
| Code 0 (optional) | 63 m² / 678 sq.ft |
| Engine (std) | 2 x 29 CV / 2 x 29 HP |
| Fuel tank capacity | 2 x 200 l / 2 x 53 US gal |
| Water tank capacity | 300 l / 79 US gal |
| Number of beds | 4 à 12 |
| CE approval | A : 10 ; B : 12 ; C : 16 ; D : 20 |

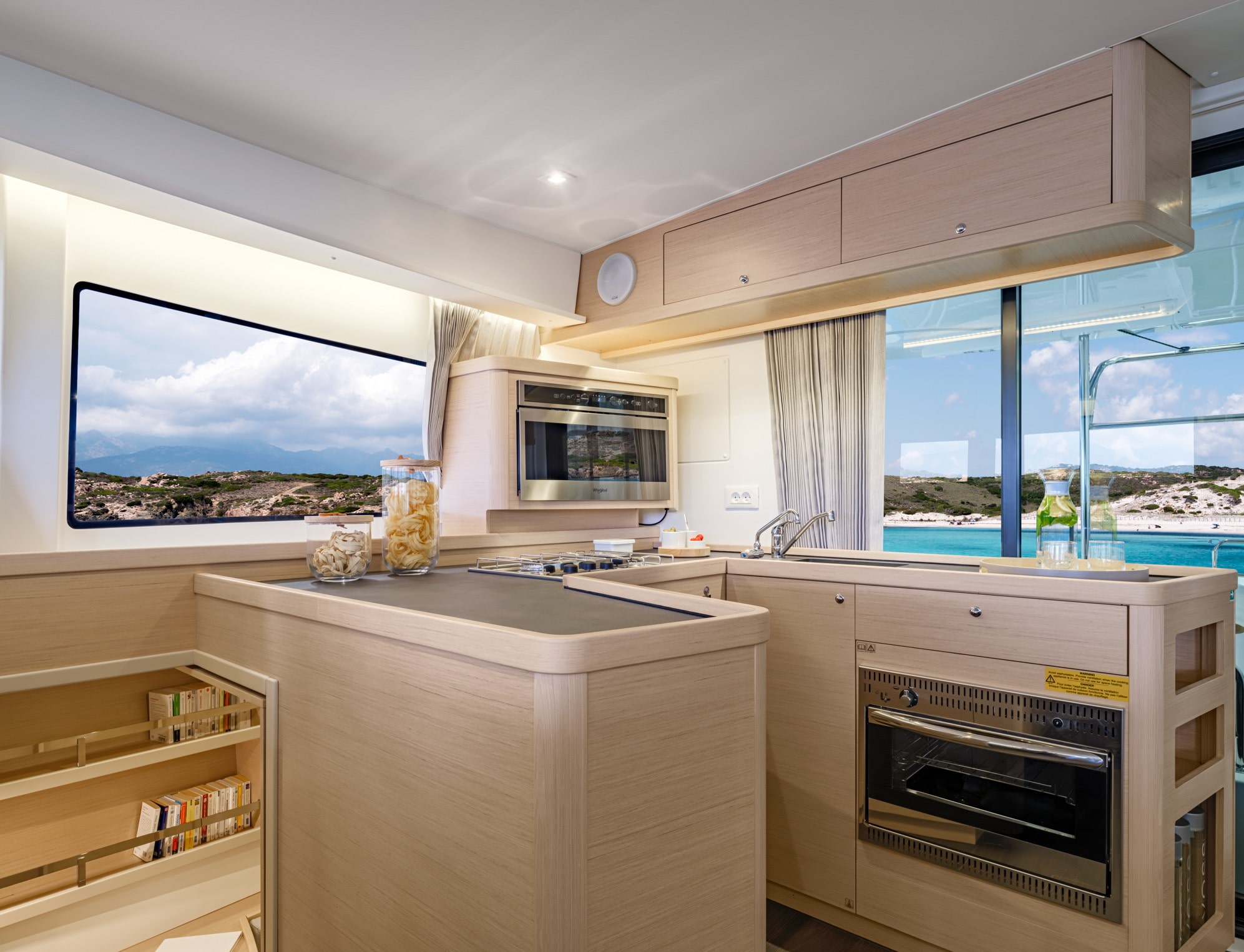

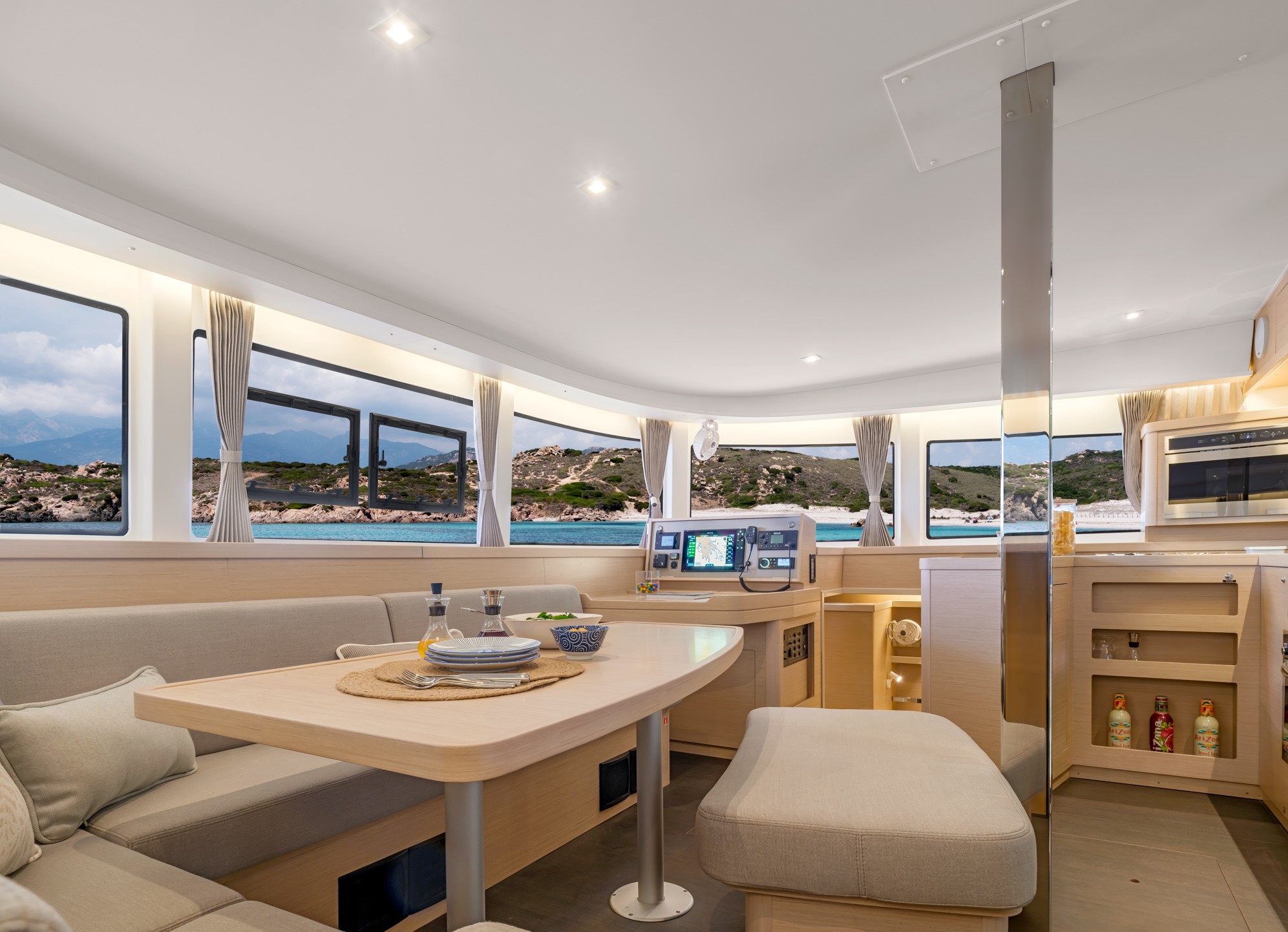

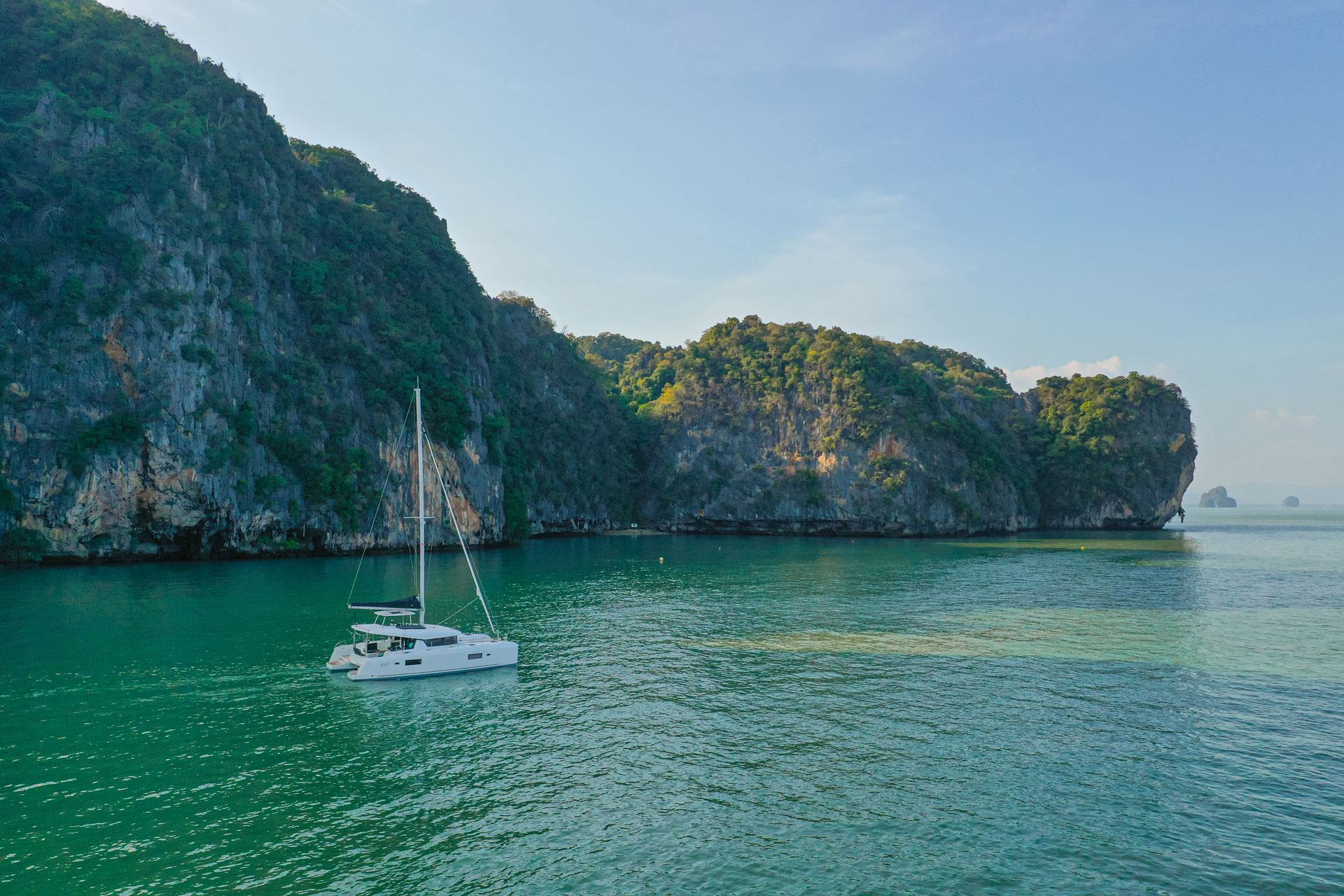

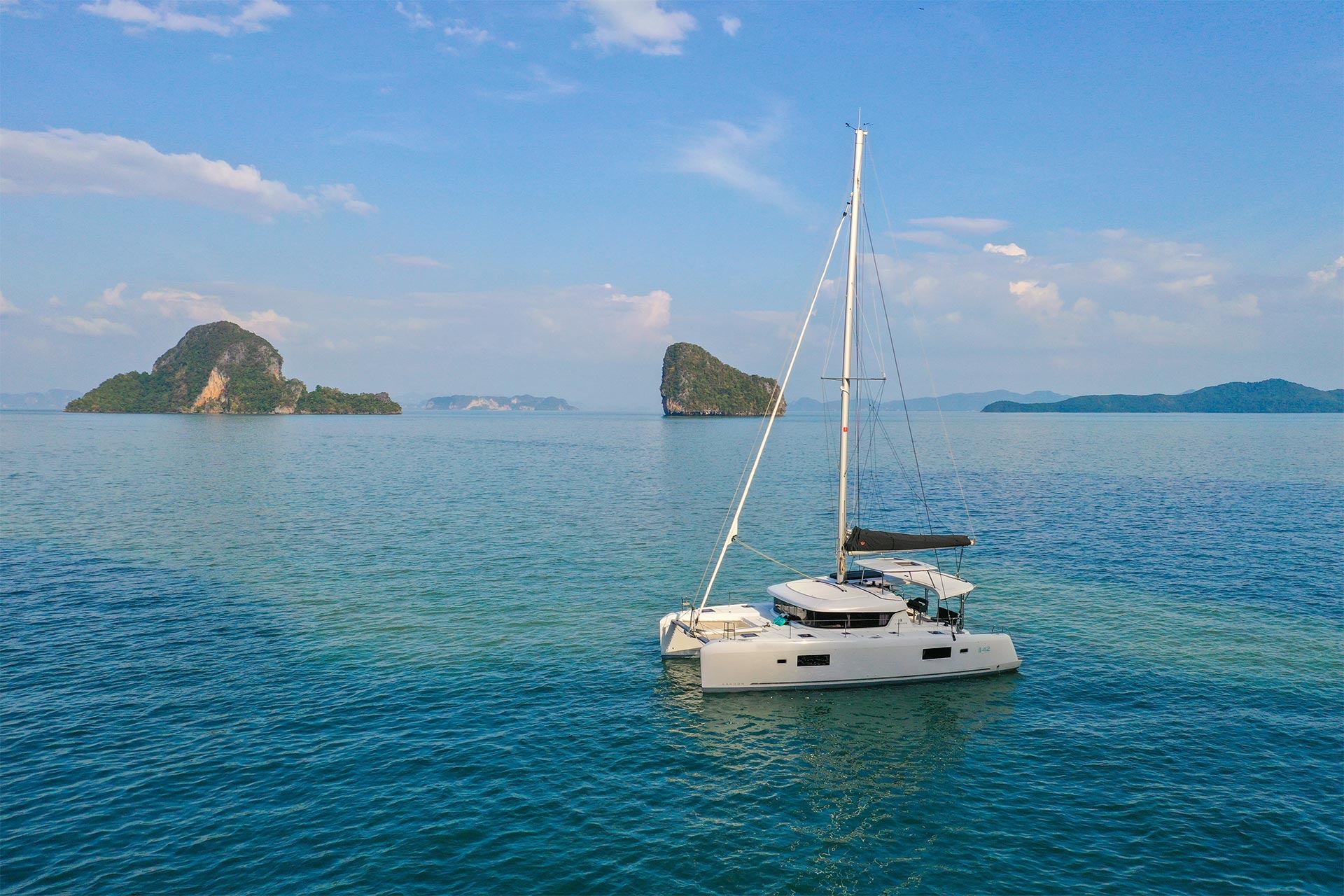

THE LAGOON 42
Performance & confort
Features of the Lagoon 42
| Naval architect | VPLP design |
| Exterior design | Patrick le Quément |
| Interior design | Nauta Design |
| Overall length | 12,80m / 42' |
| Overall width | 7,70m / 25'3'' |
| Draught | 1,25m / 4'1'' |
| Air draught | 20,65m / 67'9'' |
| Light displacement (CE) | 12,1 t / 26 681 Lbs |
| Upwind sail area | 90 m² / 968 sq.ft |
| Full-batten mainsail | 55m² / 592 sq.ft |
| Mainsail with horn (optional) | 59m² / 635 sq.ft |
| Self-steering jib | 35m² / 377 sq.ft |
| Code 0 (optional) | 68m² / 732 sq.ft |
| Engine (std) | 2 x 45 CV / 2 x 45 HP |
| Fuel tank capacity | 300 l / 79 US gal |
| Water tank capacity | 300 l / 79 US gal |
| Number of beds | 6 à 12 |
| CE approval | A : 12 ; B : 14 ; C : 20 ; D : 30 |
THE LAGOON 46
Harmony on board
Features of the Lagoon 46
| Naval architect | VPLP design |
| Exterior design | Patrick le Quément |
| Interior design | Nauta Design |
| Overall length | 13,99 m / 45'11'' |
| Overall width | 7,96 m / 26'10'' |
| Draught | 1,35 m / 4'5'' |
| Air draught | 23,21 m / 76'2'' |
| Light displacement (CE) | 15,77 t / 34 773 Lbs |
| Upwind sail area | 123 m² / 1 323 sq. ft. |
| Square top mainsail (opt.) | 80,5 m² / 866 sq.ft |
| Self tacking jib | 46,5 m² / 500 sq.ft |
| Code 0 (opt.) | 68m² / 732 sq.ft |
| Engine (std) | 2 x 45 cv CR à 2 x 57 cv CR |
| Fuel tank capacity | 2 x 300 l / 2 x 79 US gal |
| Water tank capacity | 2 x 300 l / 2 x 79 US gal |
| Number of beds | 6 à 12 |
| CE approval | A : 12 ; B : 14 ; C : 20 ; D : 30 |

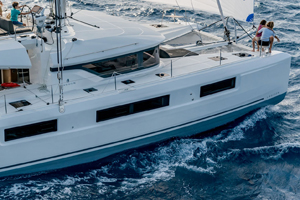

THE LAGOON 50
The spirit of the sea
Features of the Lagoon 50
| Naval architect | VPLP design |
| Exterior design | Patrick le Quément |
| Interior design | Nauta Design |
| Overall length | 14,75 m / 48'5'' |
| Overall width | 8,10 m / 26'7'' |
| Draught | 1,40 m / 4'7'' |
| Air draught | 26,51 m / 87' |
| Light displacement (CE) | 19,956 t / 43 910 Lbs |
| Upwind sail area | 144 m² / 1 549 sq.ft |
| Full-batten mainsail | 89 m² / 958 sq.ft |
| Mainsail with horn (optional) | 92 m² / 990 sq.ft |
| Furling genoa | 60,3 m² / 649 sq.ft |
| Asymetrical spinnaker (opt.) | 240 m² / 2 582 sq.ft |
| Code 0 (opt.) | 117 m² / 1 259 sq.ft |
| Engine (std) | 2 x 57 cv CR à 2 x 80 cv CR |
| Fuel tank capacity | 2 x 520 l / 2 x 137 US gal |
| Water tank capacity | 2 x 240 l / 2 x 63 Lbs |
| Number of beds | 6 à 14 |
| CE approval | A : 12 ; B : 14 ; C : 20 ; D : 30 |

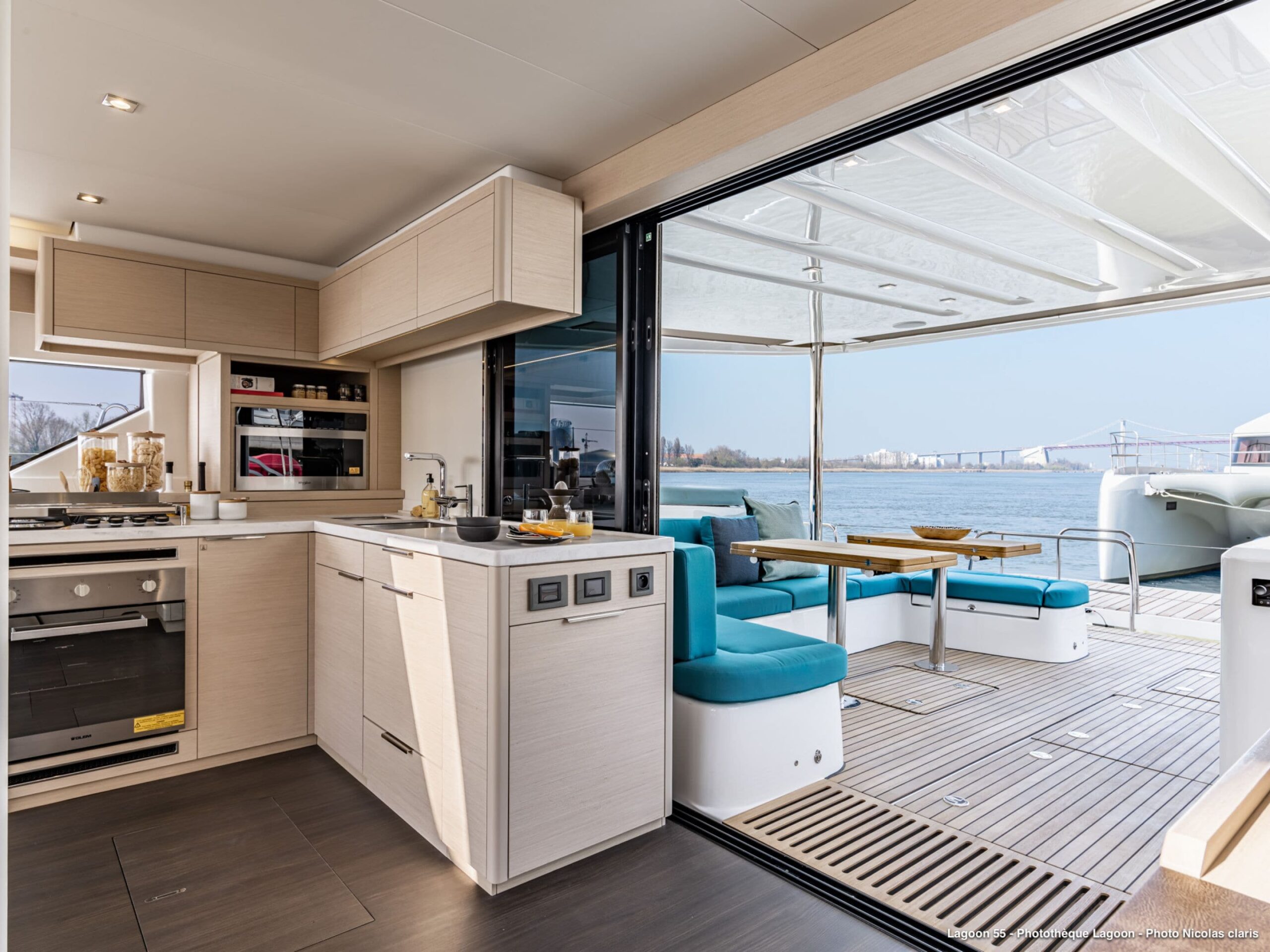

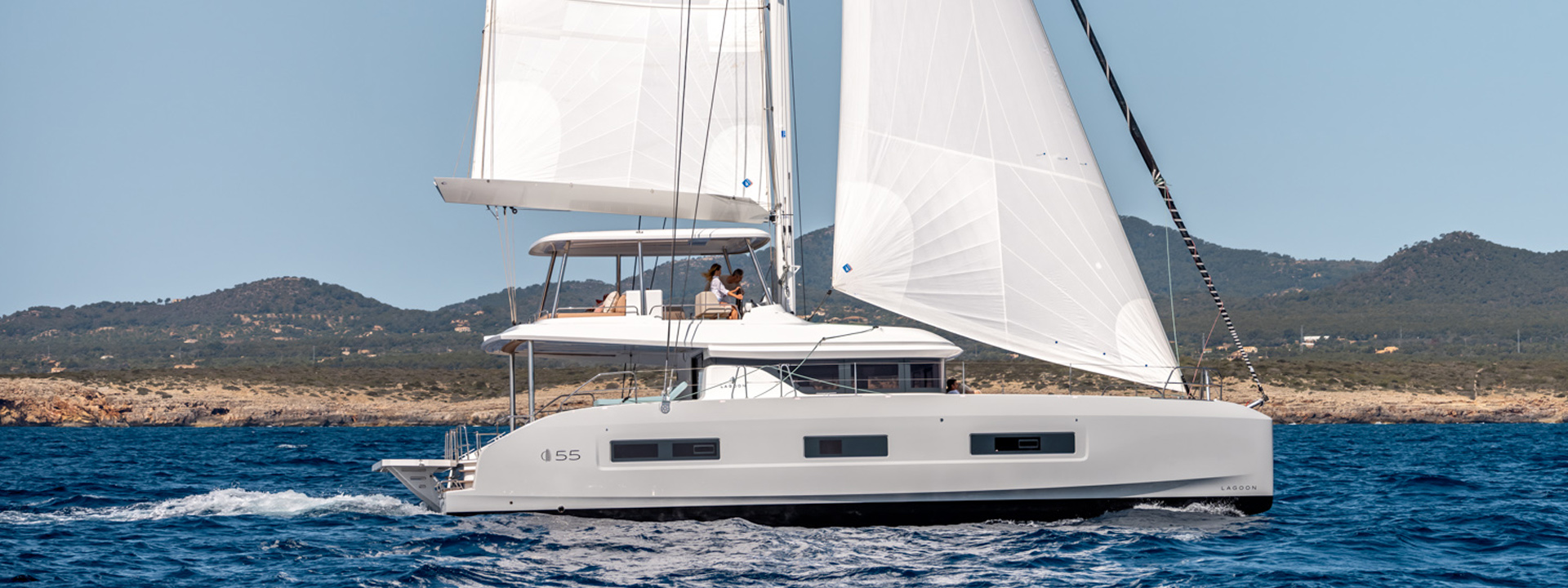

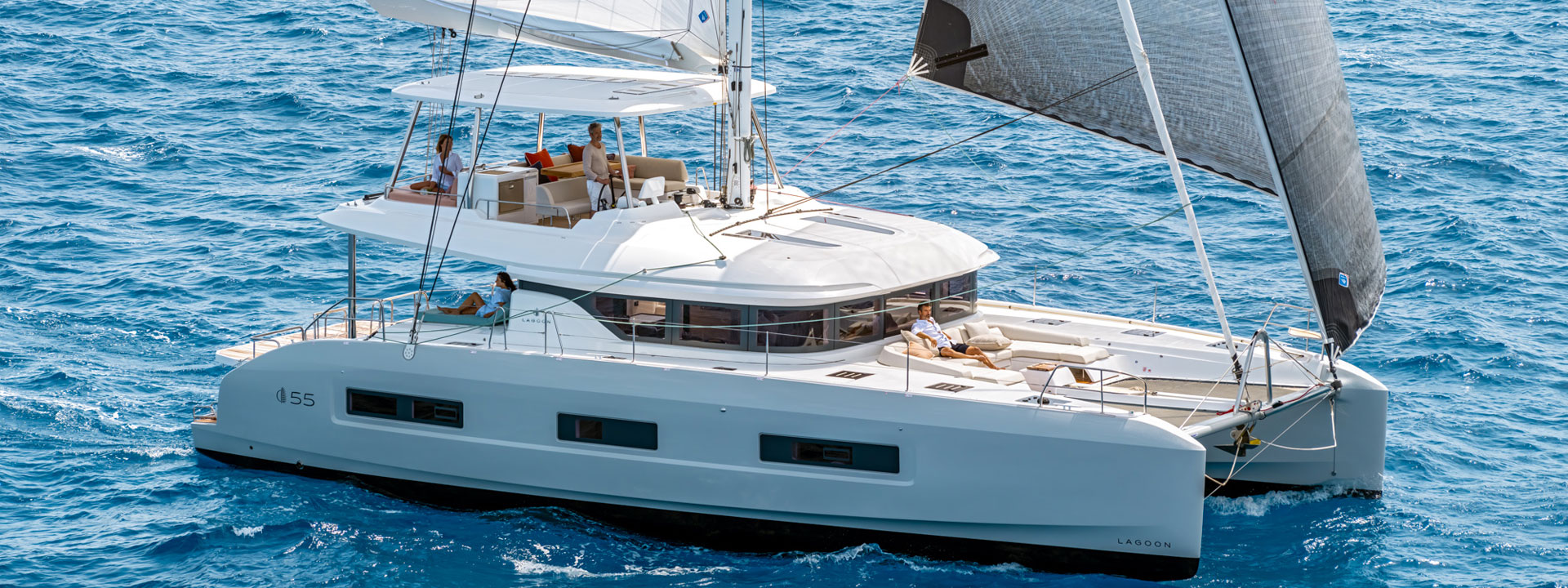

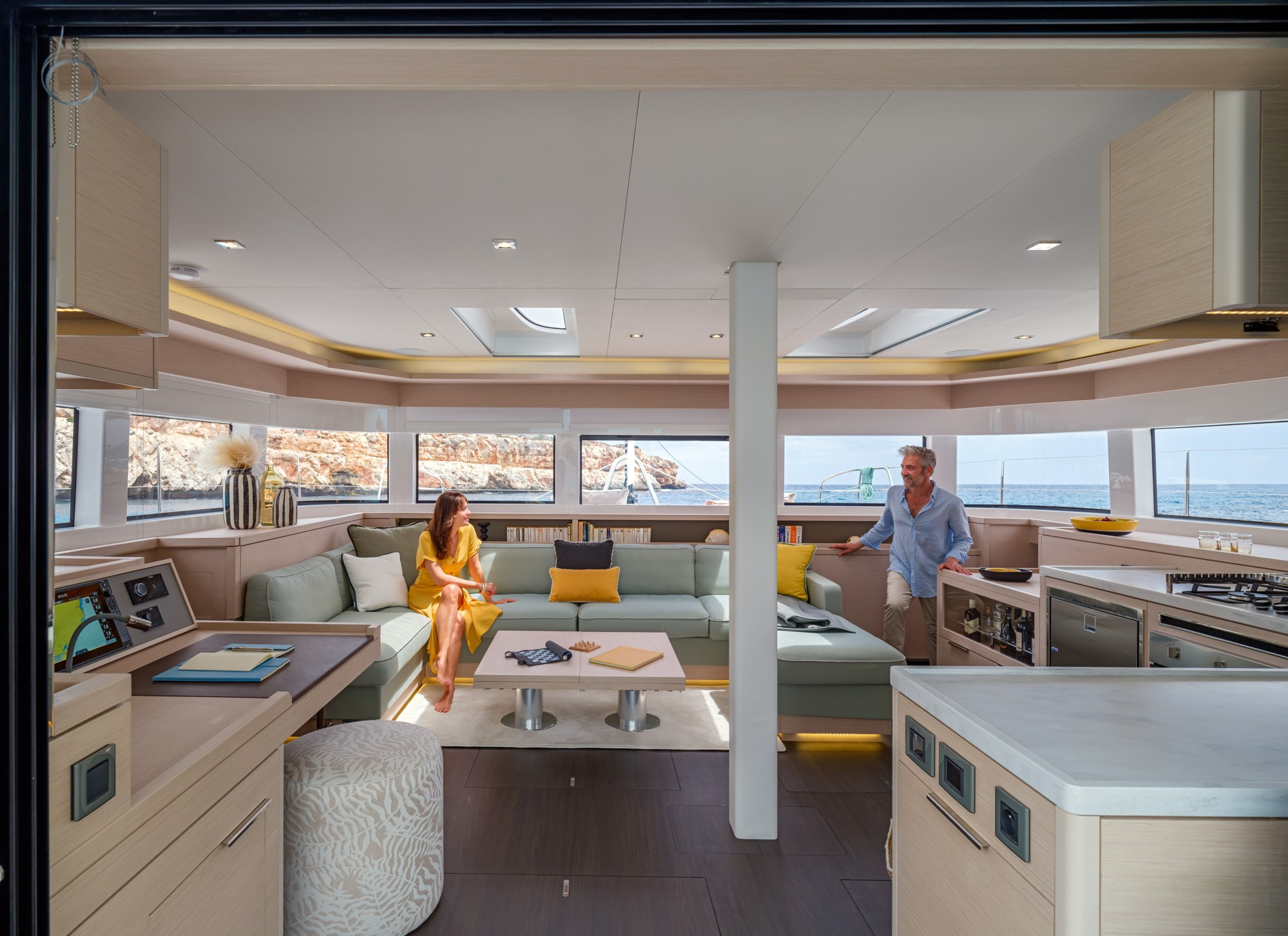

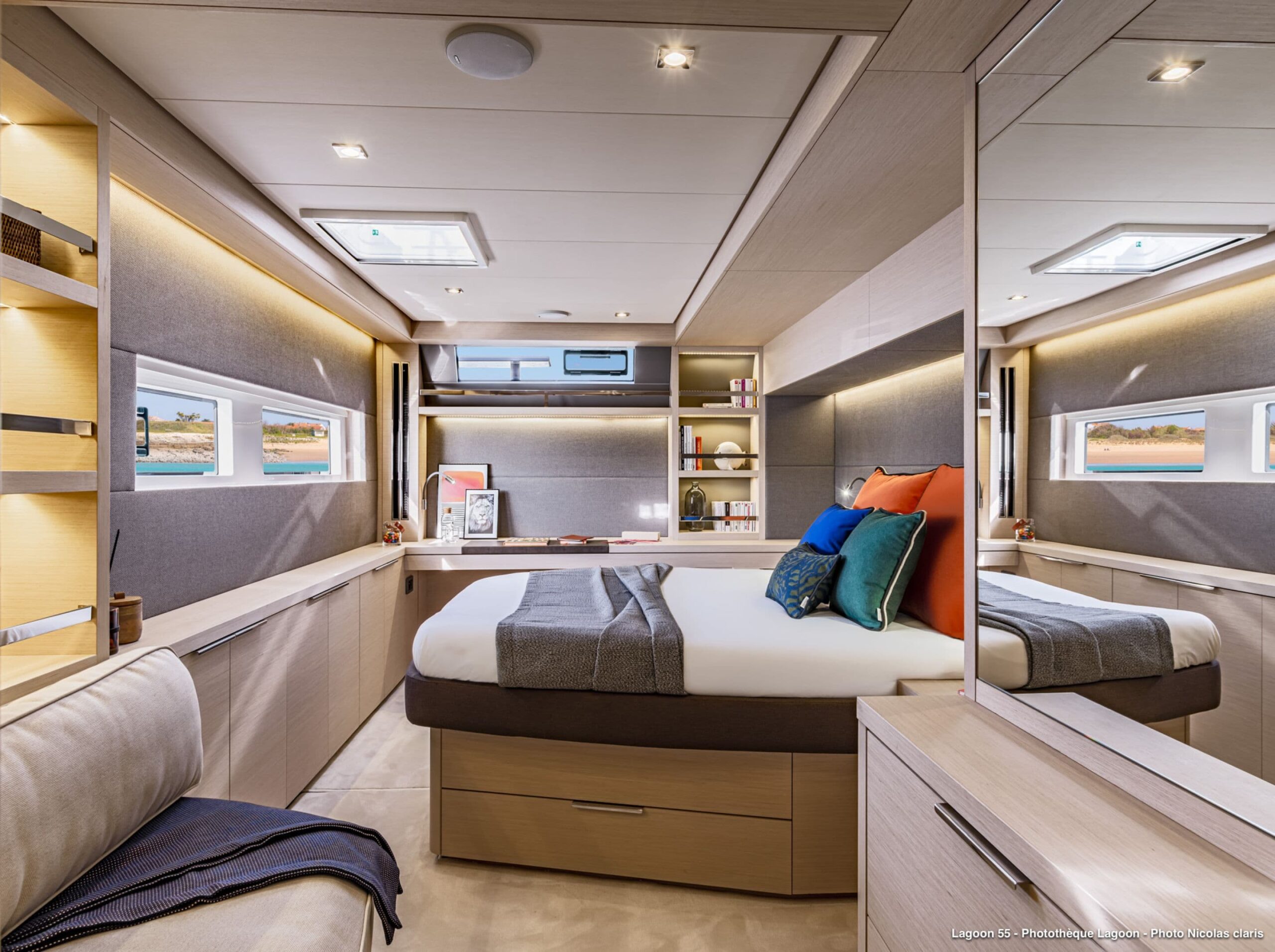

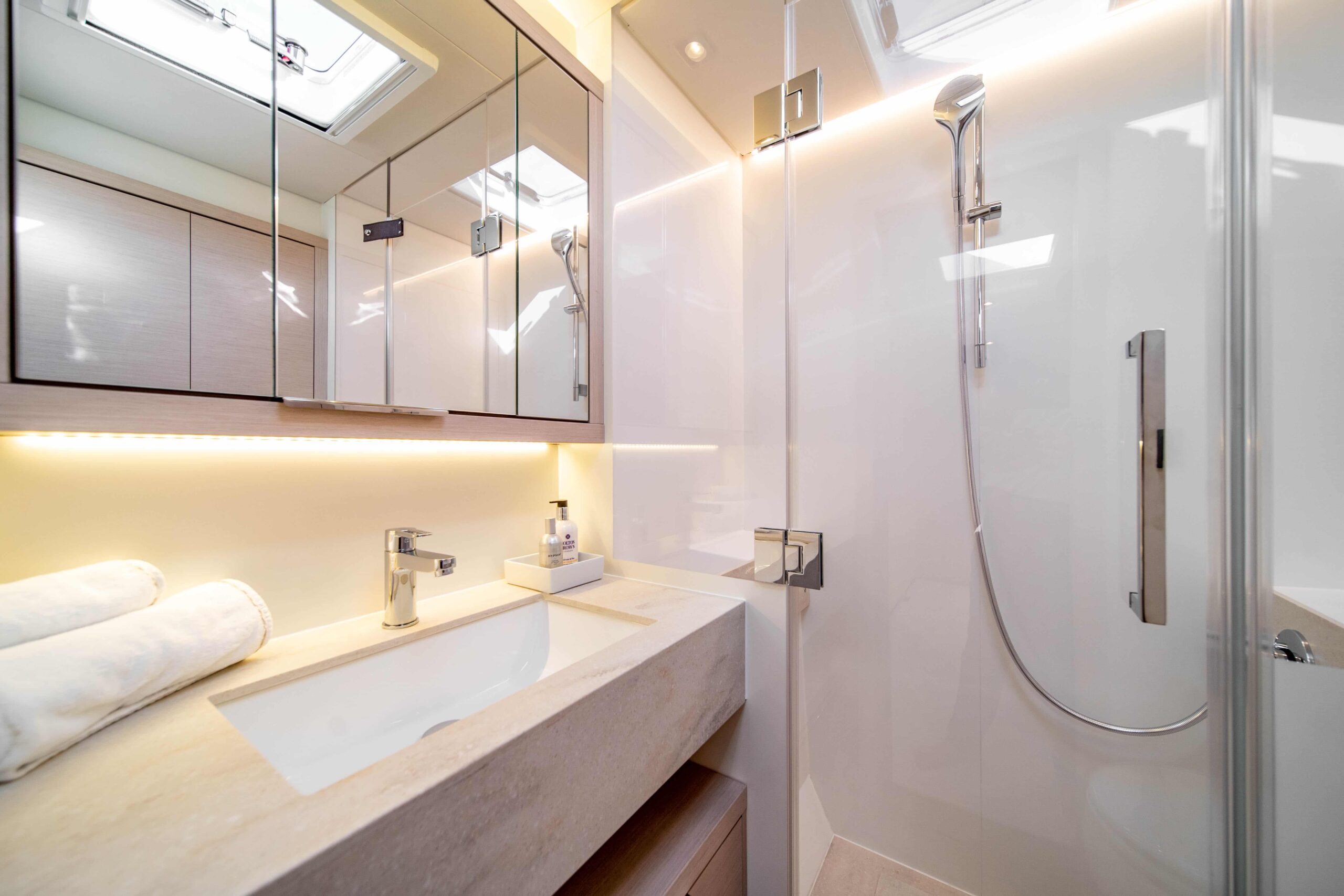

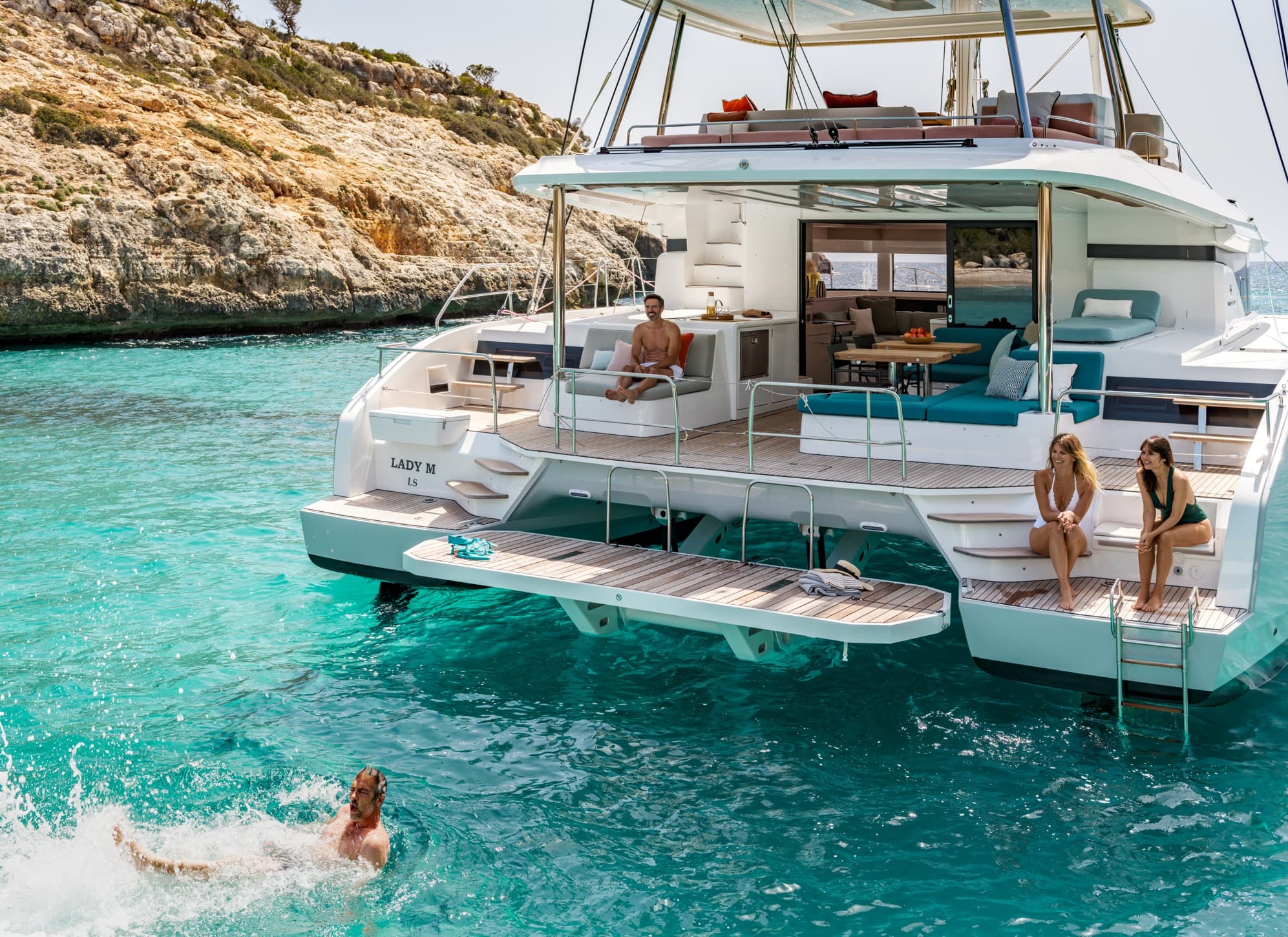

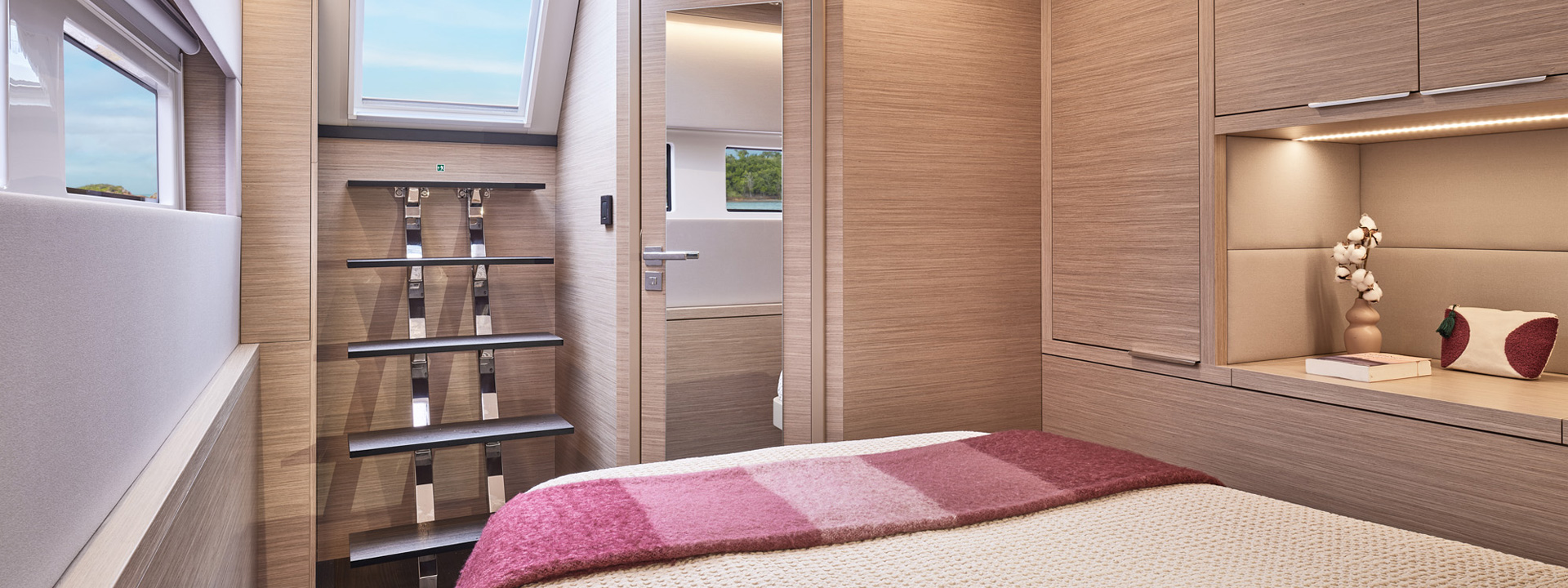

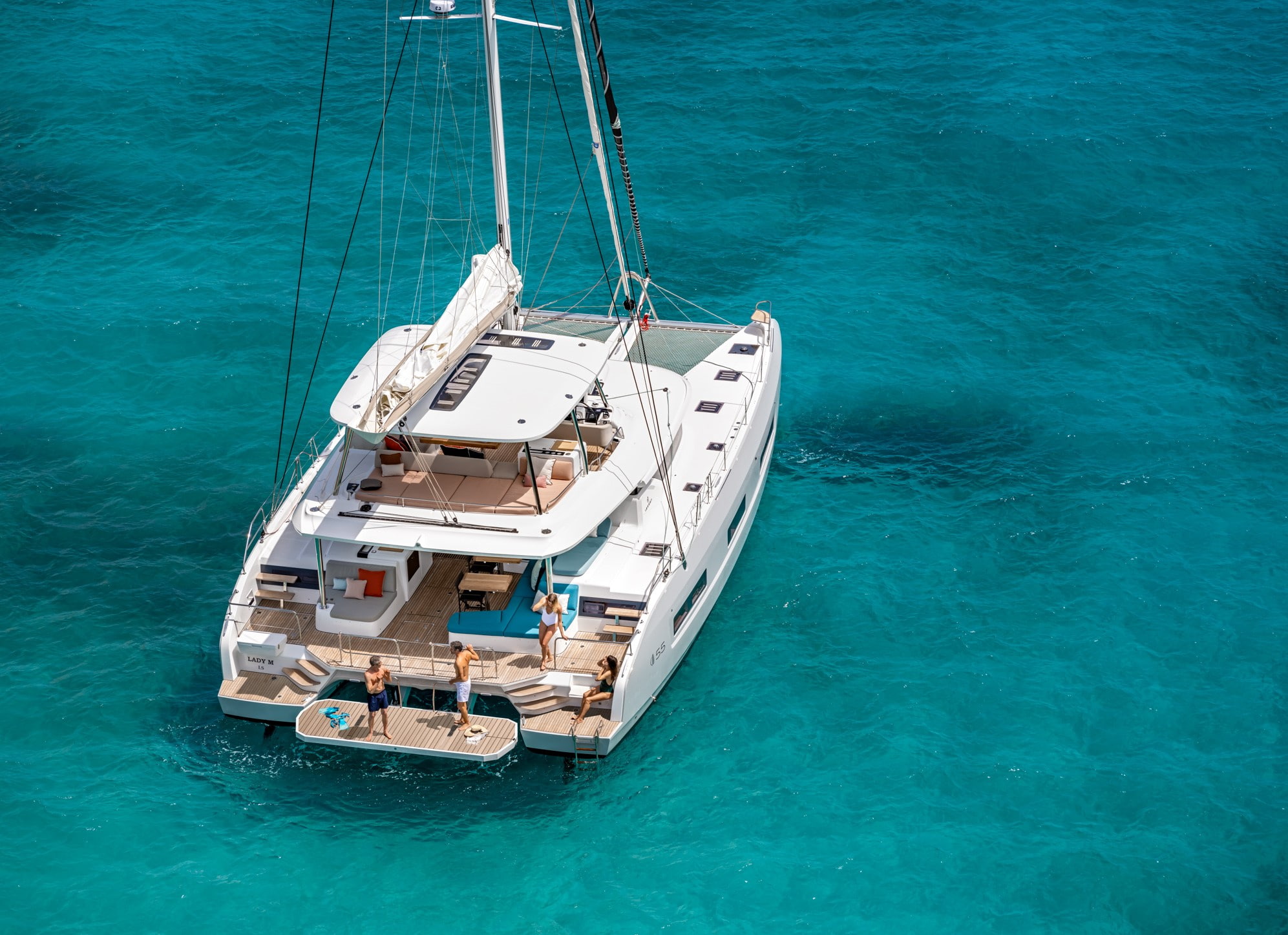

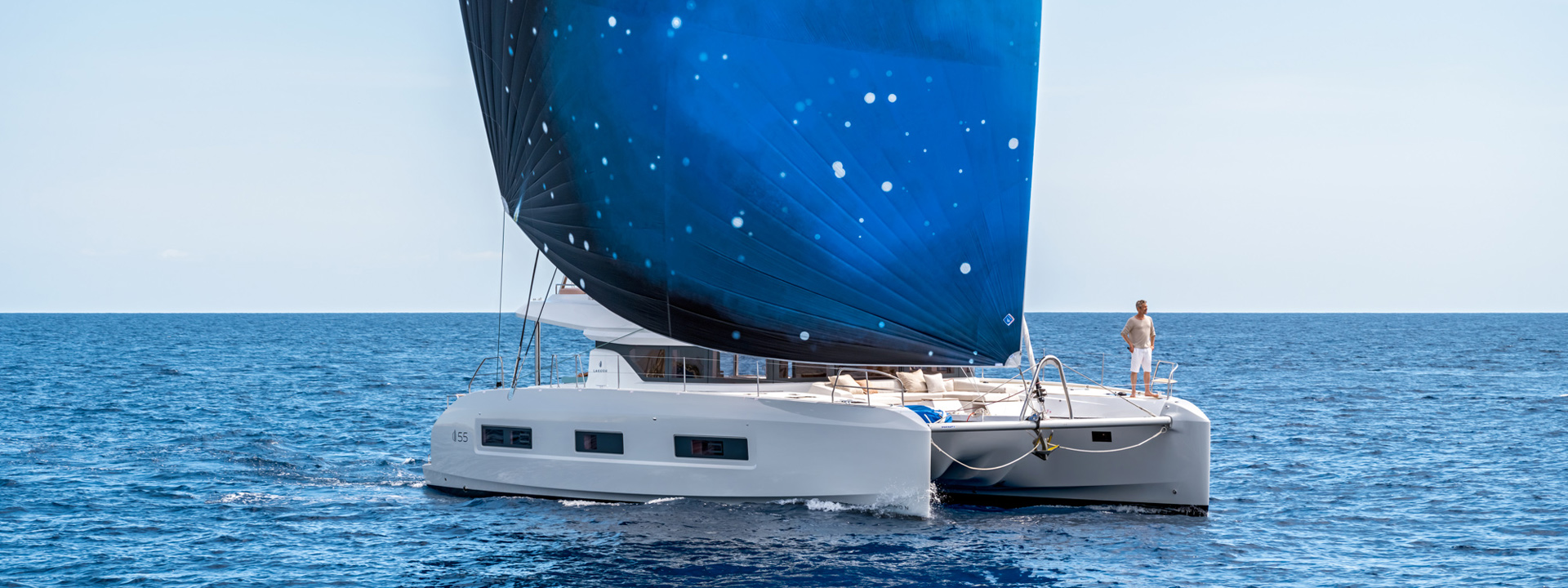

THE LAGOON 55
Features of the Lagoon 55
| Naval architect | VPLP design |
| Exterior design | Patrick le Quément |
| Interior design | Nauta Design |
| Overall length | 16,56 m / 54'4'' |
| Overall width | 9,00 m / 29'6'' |
| Draught | 1,55 m / 5'1'' |
| Air draught | 29,43 m / 96'7'' |
| Light displacement (CE) | 27,036 T / 59.614 Lbs |
| Upwind sail area | 186 m² / 2,001 sq ft |
| Full-batten mainsail | 107 m² / 1,151 sq ft |
| Self-tacking jib on furler | 74 m² / 796 sq ft |
| Engine - standard | 2 x 80 CV / 2 x 80 HP |
| Engine - option | 2 x 115 CV / 2 x 115 HP |
| Fuel tank capacity | 1100 L / 290 US gal |
| Water tank capacity | 960 L / 254 US gal |
| Number of beds | 8 à 16 |
| CE approval | A: 14 / B: 14 / C: 20 / D: 30 |

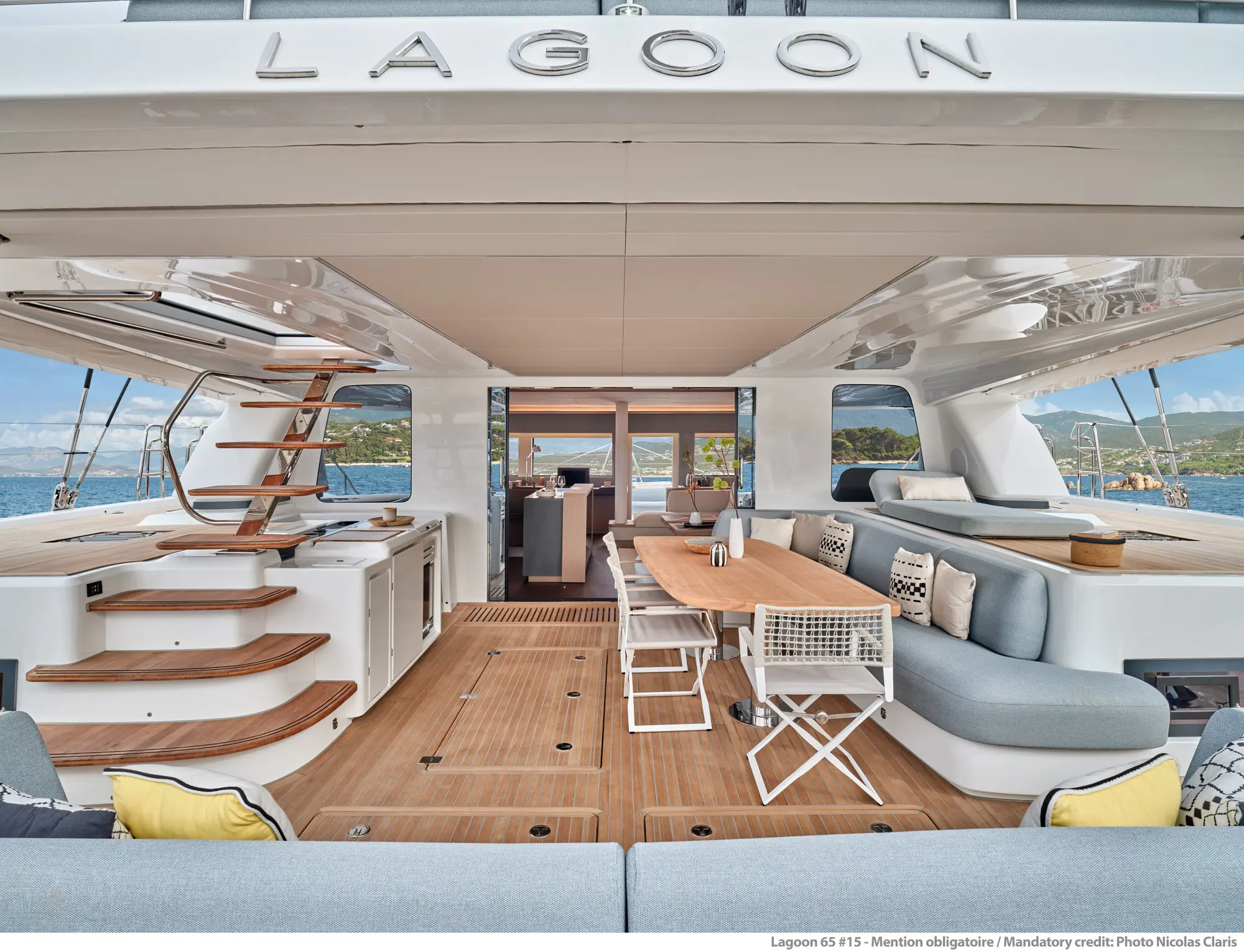

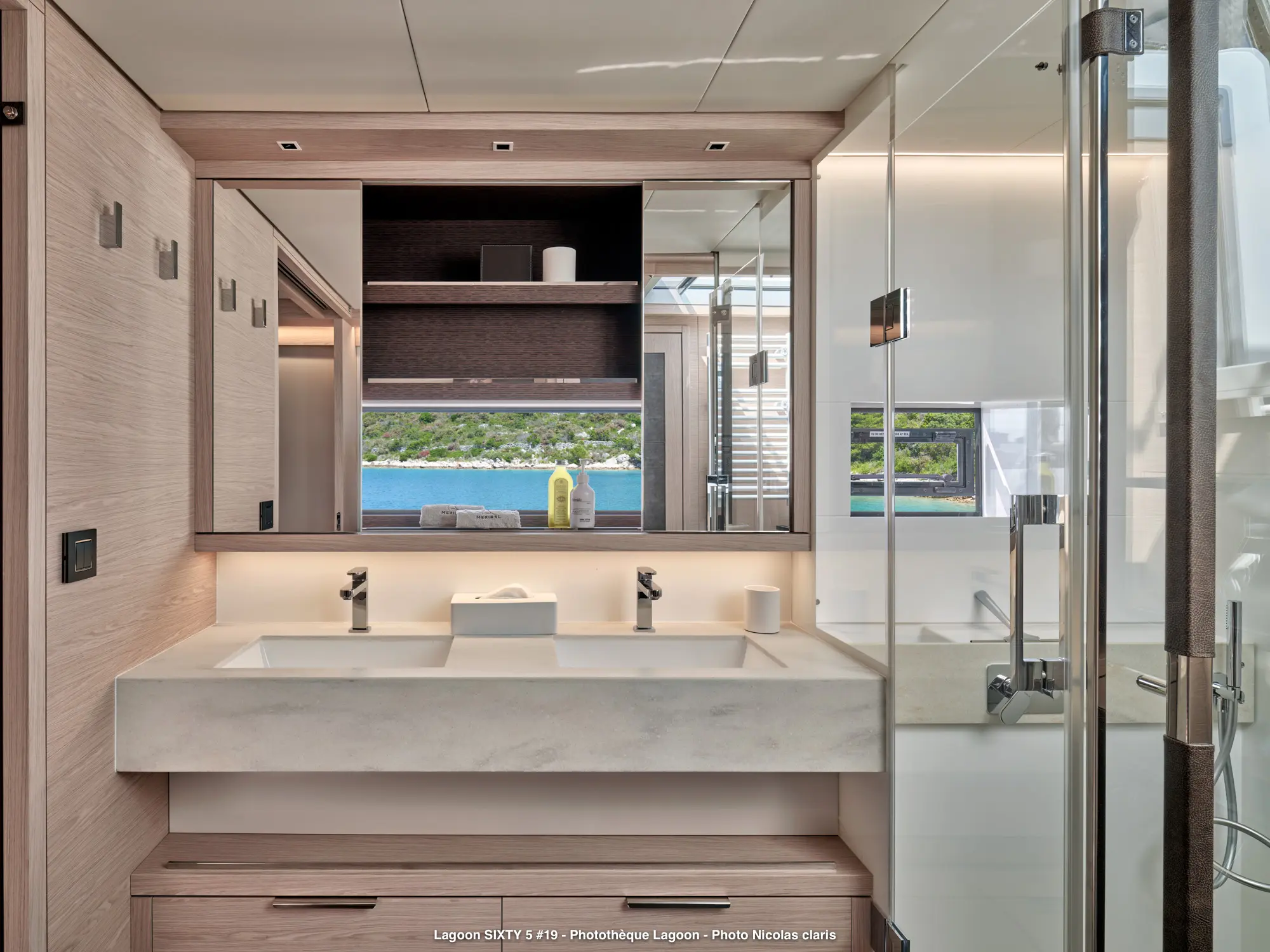

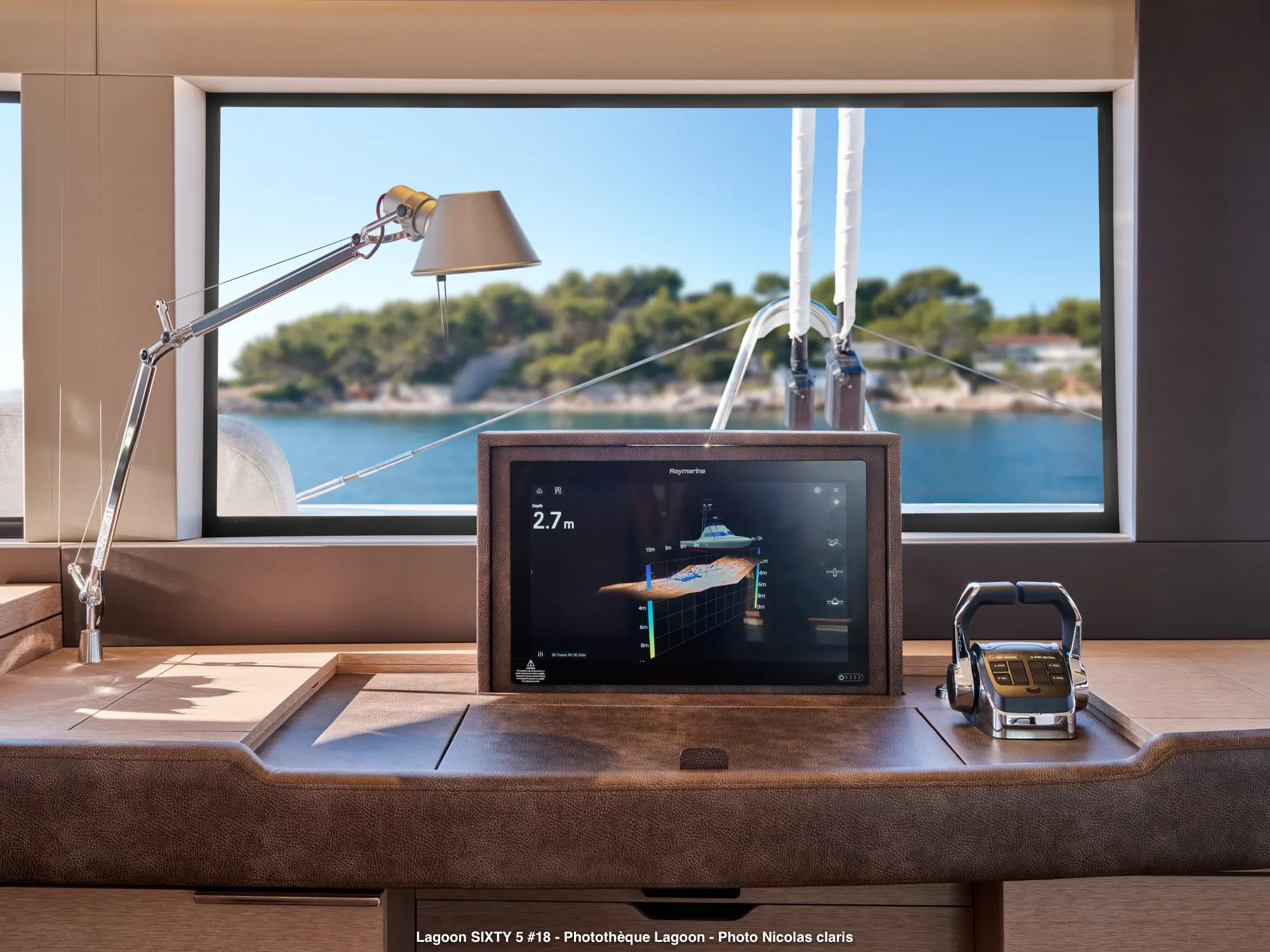

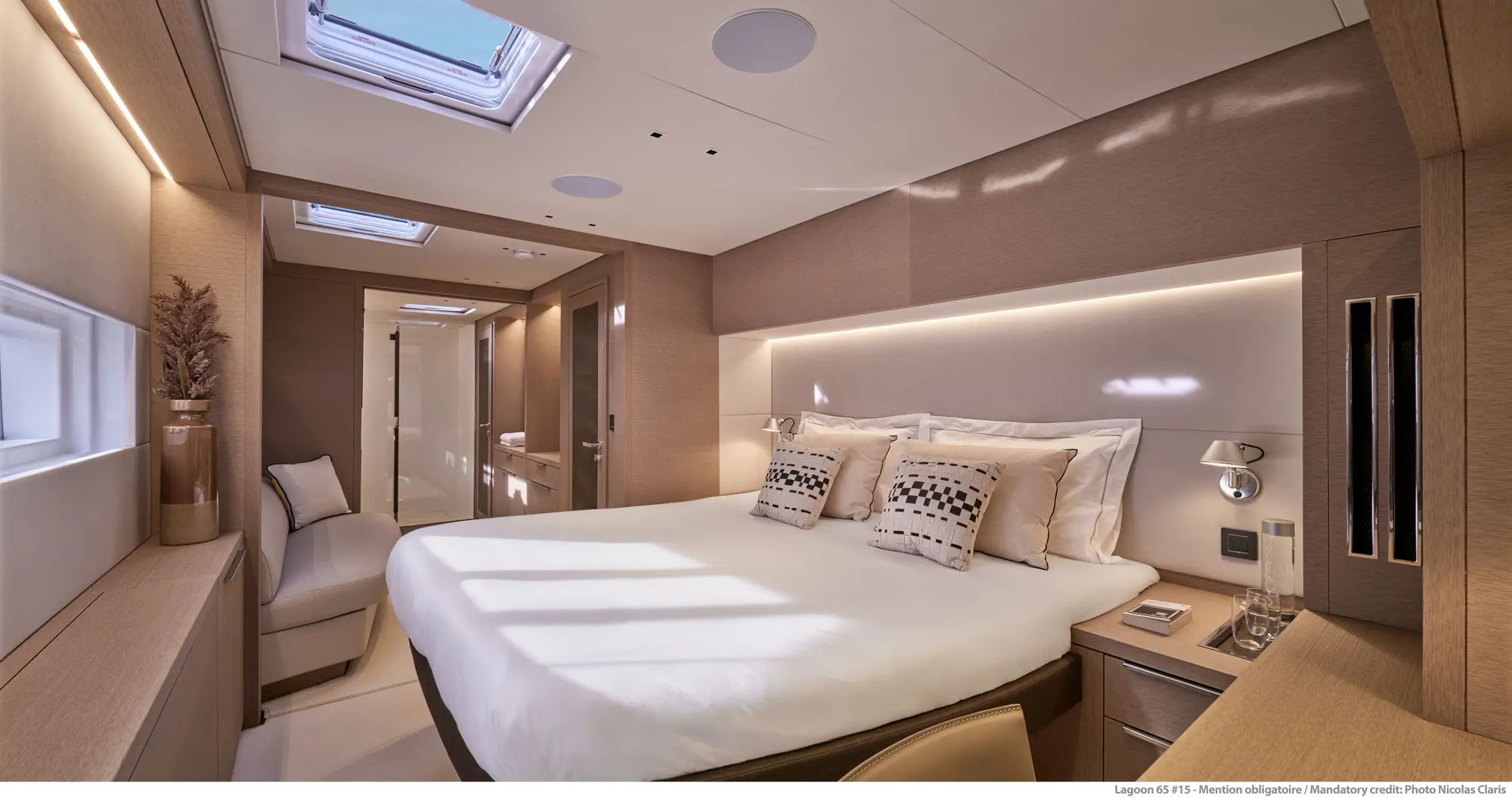

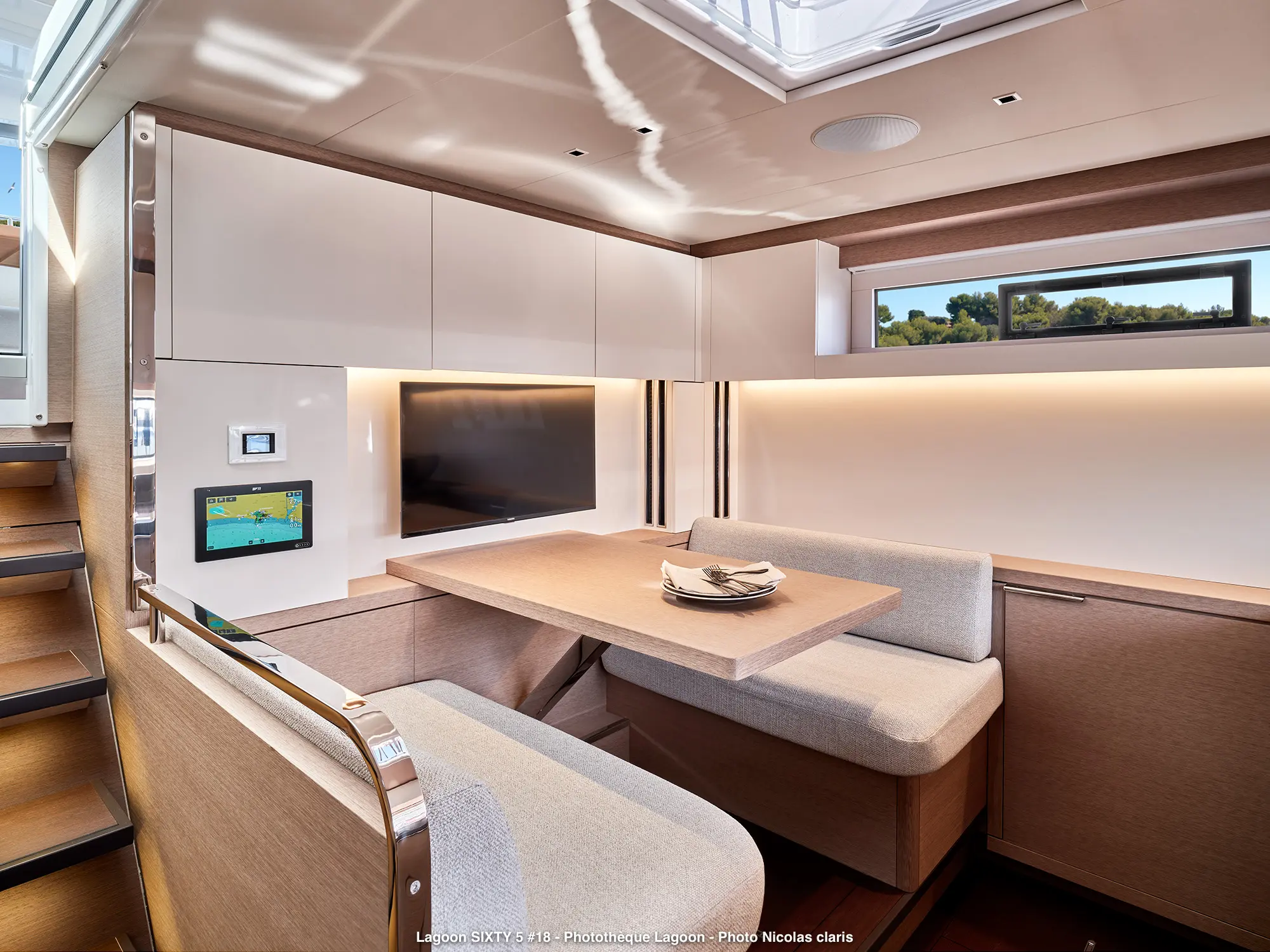

THE LAGOON SIXTY 5
A new yacht for 2020!
Features of the Lagoon Sixty 5
| Naval architect | VPLP design |
| Exterior design | Patrick le Quément |
| Interior design | Nauta Design |
| Overall length | 15,85 m / 52' |
| Overall width | 8,60 m / 23'8'' |
| Draught | 1,50 m / 4'11'' |
| Air draught | 27,66 m / 90'9'' |
| Light displacement (CE) | 40 T / 88200 Lbs |
| Upwind sail area | 268 m² / 2,884 sq.ft |
| Full-batten mainsail | 170,5 m² / 1835 sq.fr |
| Engine (std) | 2 x 195 HP / 2 x 195 CV |
| Fuel tank capacity | 2 x 650 l / 2 x 172 US Gal |
| Water tank capacity | 2 x 500 l / 2 x 132 US Gas |
| Number of beds | 8 to 16 |
| CE approval | A: 14 - B: 18 - C: 24 - D: 40 |
THE LAGOON SEVENTY 7
A world beyond elegance
Features of the Lagoon Seventy 7
| Naval architect | VPLP design |
| Exterior design | Patrick le Quément |
| Interior design | Nauta Design |
| Overall length | 23.28 m / 76'5'' |
| Overall width | 11 m / 36'1'' |
| Draught | 1,90 m / 6'3'' |
| Air draught | 36,60 m / 120'1'' |
| Light displacement (CE) | 56,8 t / 125,685 Lbs |
| Square top mainsail (opt.) | 205 m² / 2 206 sq.ft |
| Genoa (optional) | 130 m² / 1,399 sq.ft |
| Staysail (optional) | 76 m² / 818 sq.ft |
| Asymetrical spinnaker (opt.) | 448 m² / 4 820 sq.ft |
| Code 0 (opt.) | 208 m² / 2 238 sq.ft |
| Engine (std) | Volvo D4-175 hp or John Deere N5-230 hp |
| Fuel tank capacity | 2 x 800 l / 2 x 211 US gal |
| Water tank capacity | 300 l / 79 US gal |
| Number of beds | 8 à 16 / 8 to 16 |
| CE approval | A :14 - B :18 - C : 24 - D - 40 |
